HIAB Cranes
37,000 + GVW

Learn More About The

HIAB X-CLX 108

FLEXIBILITY, CAPACITY AND REACH TO DO IT ALL

Learn More About The

HIAB X-CLX 112

A CAPACITY FOR PROFITABILITY

HIAB XS 122

Lifting Capacity
4,000 kg @ 2.9 m
600 kg @ 15.0 m

Maximum Hydraulic Outreach
15.1 m

HIAB X-CLX 128

Lifting Capacity
4,300 kg @ 2.8 m
500 kg @ 15 m

Maximum Hydraulic Outreach
15.1 m

HIAB HiDUO 138

Lifting Capacity
4400 kg @ 2.8 m
560 kg @ 15 m

Maximum Hydraulic Outreach
15.1 m

HIAB XS 144

Lifting Capacity
5,000 kg @ 2.6 m
720 kg @ 15.0 m

Maximum Hydraulic Outreach
15.1 m

HIAB X-CLX 148

Lifting Capacity
4,900 kg @ 2.8 m
820 kg @ 12.7 m

Maximum Hydraulic Outreach
12.8 m

HIAB X-HiDUO 158

Lifting Capacity
5,000 kg @ 2.9 m
680 kg @ 15 m

Maximum Hydraulic Outreach
15.1 m

HIAB Z-Pro 171

Lifting Capacity
(kNm): 160

Maximum Hydraulic Outreach
8.4 m

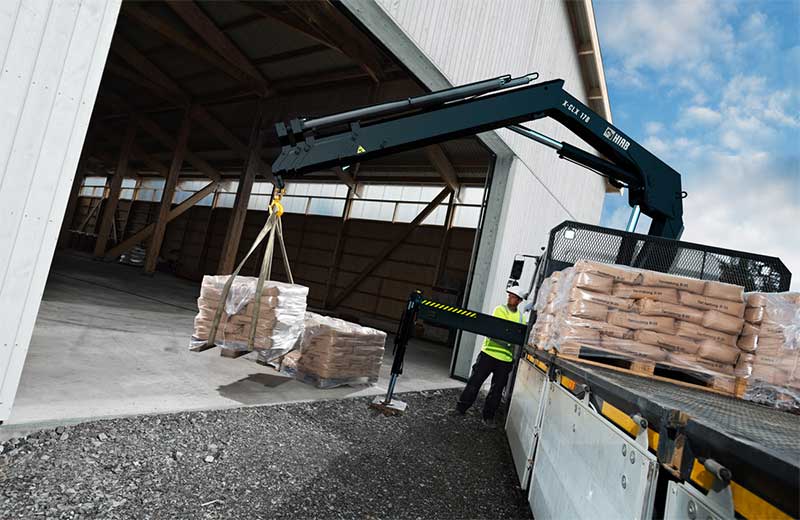

HIAB X-CLX 178

Lifting Capacity
5,100 kg @ 3.2 m
1,360 kg @ 10.6 m

Maximum Hydraulic Outreach
10.8 m

HIAB X-HiDUO 188

Lifting Capacity
5,100 kg @ 3.4 m
590 kg @ 17.4 m

Maximum Hydraulic Outreach
17.5 m

HIAB Z-HiPRO 191

Lifting Capacity
(kNm): 179

Maximum Hydraulic Outreach
8.4 m

HIAB Z-HiPRO 192

Lifting Capacity
5,800 kg @ 3.1 m
650 kg @ 17.4 m

Maximum Hydraulic Outreach
17.5 m

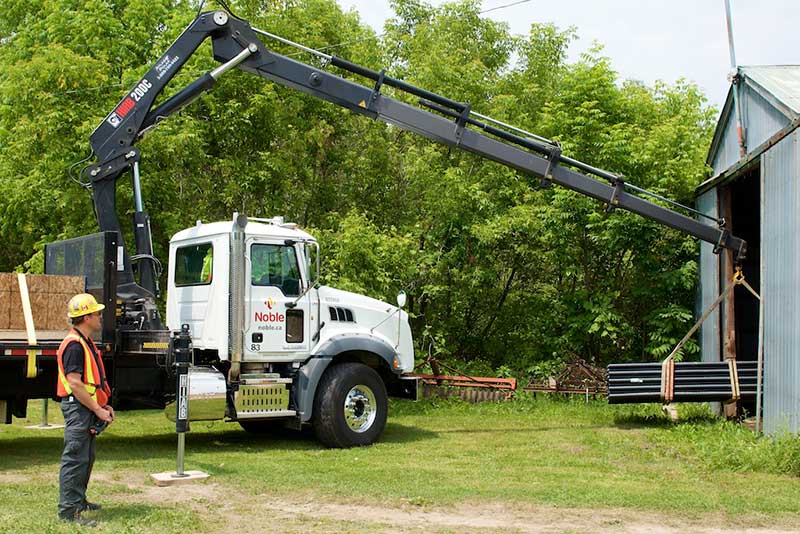

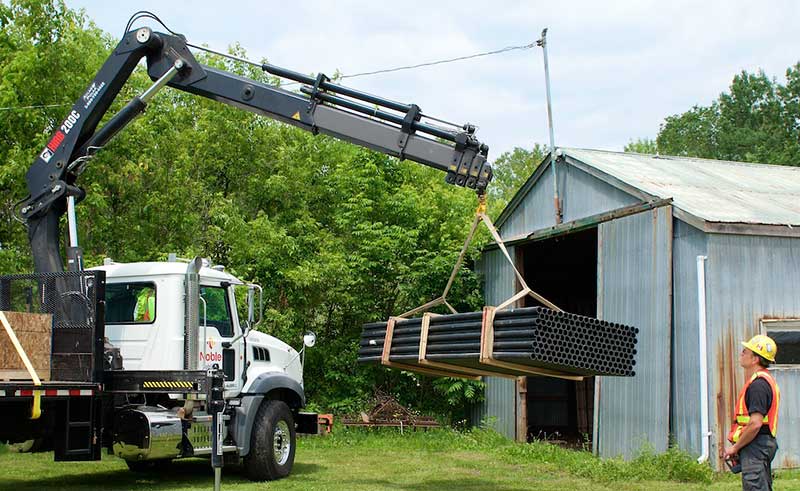

HIAB 200C

Lifting Capacity
7,000 kg @ 2.4 m
1,020 kg @ 13.8 m

Maximum Hydraulic Outreach
14.1 m

HIAB XS 211

Lifting Capacity
6,700 kg @ 2.6 m
320 kg @ 20.9 m

Maximum Hydraulic Outreach
16.6 m

HIAB X-CLX 218

Lifting Capacity
6,000 kg @ 3.2 m
1,660 kg @ 10.5 m

Maximum Hydraulic Outreach
10.6 m

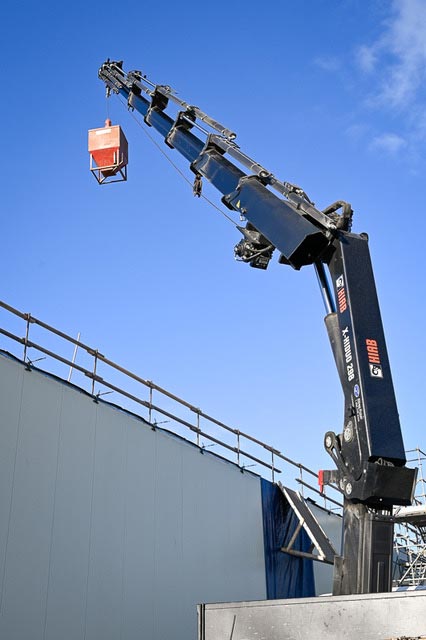

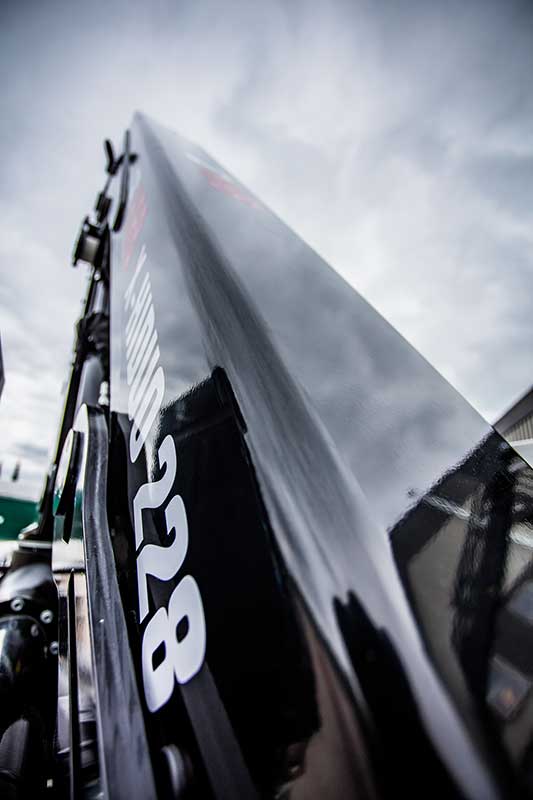

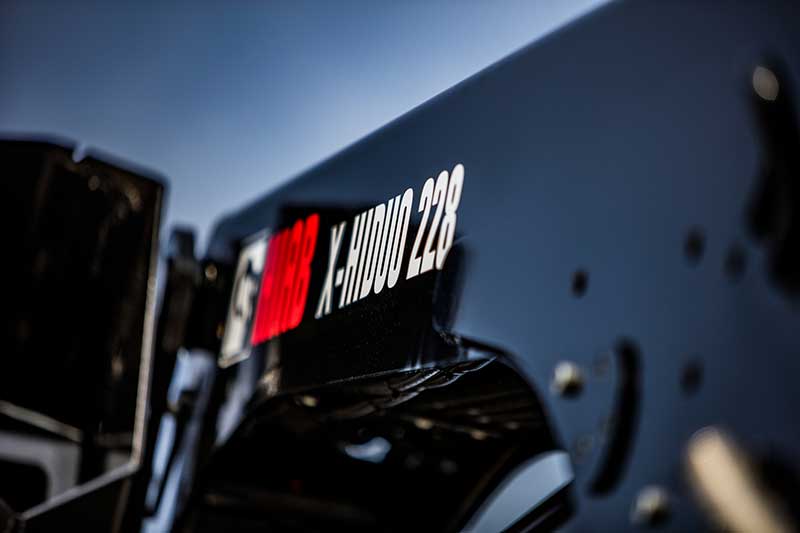

HIAB X-HiDUO 228

Lifting Capacity
5,700 kg @ 3.5 m
810 kg @ 17.2 m

Maximum Hydraulic Outreach
17.3 m

HIAB XS 244

Lifting Capacity
8,400 kg @ 2.4 m
920 kg @ 16.1 m

Maximum Hydraulic Outreach
16.2 m

HIAB X-CLX 248

Lifting Capacity
8,400 kg @ 2.4 m
1,120 kg @ 15 m

Maximum Hydraulic Outreach
15.1 m

HIAB XS 255 K

Lifting Capacity
2,694 kg @ 8.1 m
1,261 kg @ 15.1 m
(Building Supply)

Maximum Hydraulic Outreach
15.6 m

HIAB X-HiDUO 258

Lifting Capacity
8,400 kg @ 2.4 m
1,200 kg @ 15 m

Maximum Hydraulic Outreach
15.1 m

HIAB X-CLX 288

Lifting Capacity
9,400 kg @ 2.5 m
1,360 kg @ 15 m

Maximum Hydraulic Outreach
15.1 m

HIAB X-HiDUO 298

Lifting Capacity
9,400 kg @ 2.5 m
1,460 kg @ 15 m

Maximum Hydraulic Outreach
15.1 m

Learn More About The

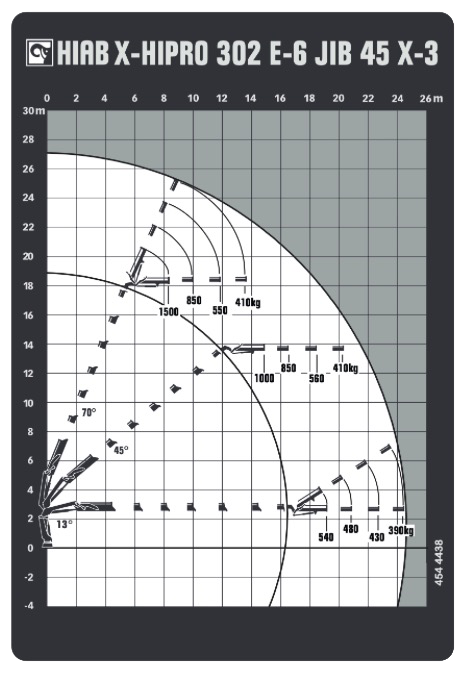

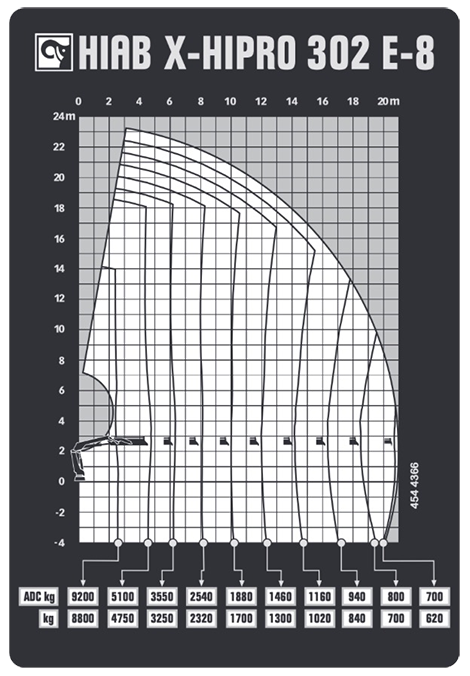

HIAB X-HiPRO 302

MORE SPEED, POWER, PROFIT – EVERYTHING

HIAB XS 322

Lifting Capacity
8,800 kg @ 3.1 m
840 kg @ 20.9 m

Maximum Hydraulic Outreach
22.6 m

HIAB XS 335 K

Lifting Capacity
3,402 kg @ 7.7 m
1,243 kg @ 17.3 m
(Building Supply)

Maximum Hydraulic Outreach
18.1 m

Learn More About The

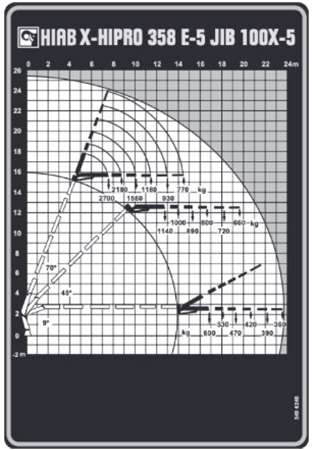

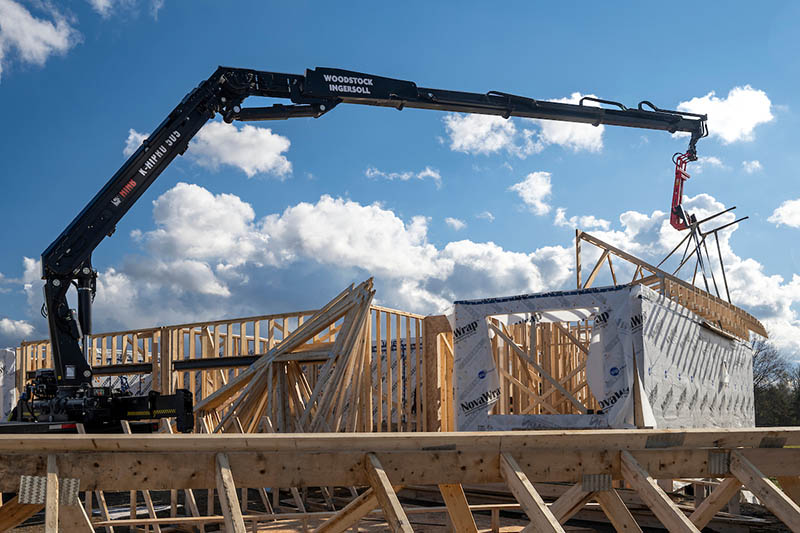

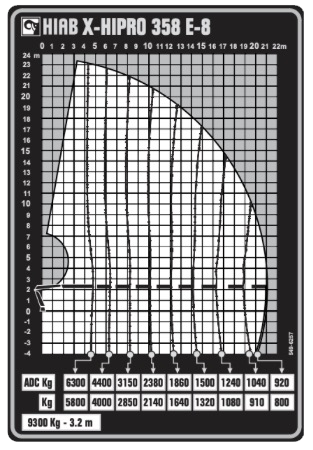

HIAB X-HiPRO 358

360-DEGREE FLEXIBILITY WITH NON-STOP USE

Learn More About The

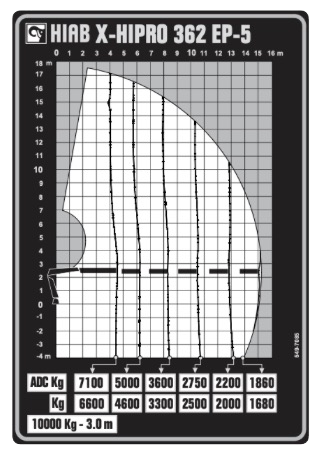

HIAB X-HiPRO 362

MORE MUSCLE IN YOUR LIFTS

HIAB XS 377

Lifting Capacity
10,000 kg @ 3.1 m
998 kg @ 20.8 m

Maximum Hydraulic Outreach
20.9 m

HIAB XS 410 K

Lifting Capacity
1,360 kg @ 17.3 m
2,267 kg @13 m

Maximum Hydraulic Outreach
22.5 m

HIAB XS 422

Lifting Capacity
12,000 kg @ 2.9 m
1,202 kg @ 20.8 m

Maximum Hydraulic Outreach
20.8 m

HIAB XS 435 K

Lifting Capacity
2,380 kg @ 11.4 m
1,020 kg @ 21.0 m
(Building Supply)

Maximum Hydraulic Outreach
24.2 m

HIAB XS 477

Lifting Capacity
11,998 kg @ 3.2 m
1,379 kg @ 20.8 m

Maximum Hydraulic Outreach
20.8 m

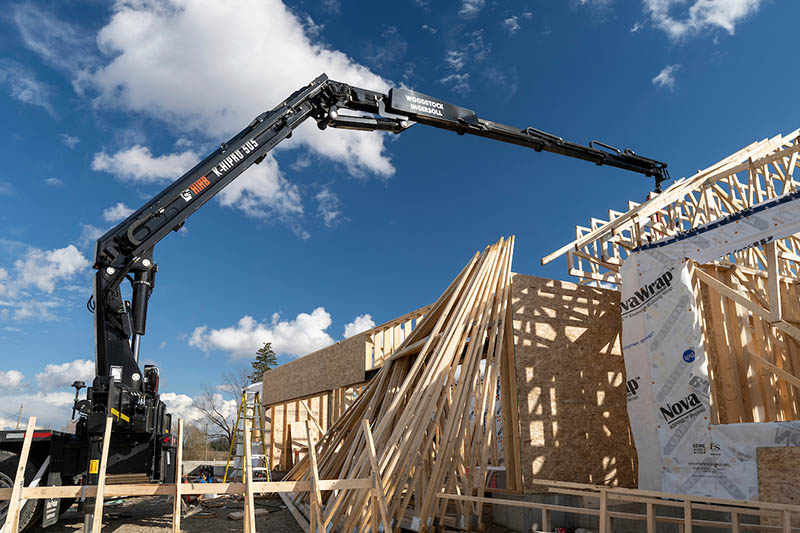

Learn More About The

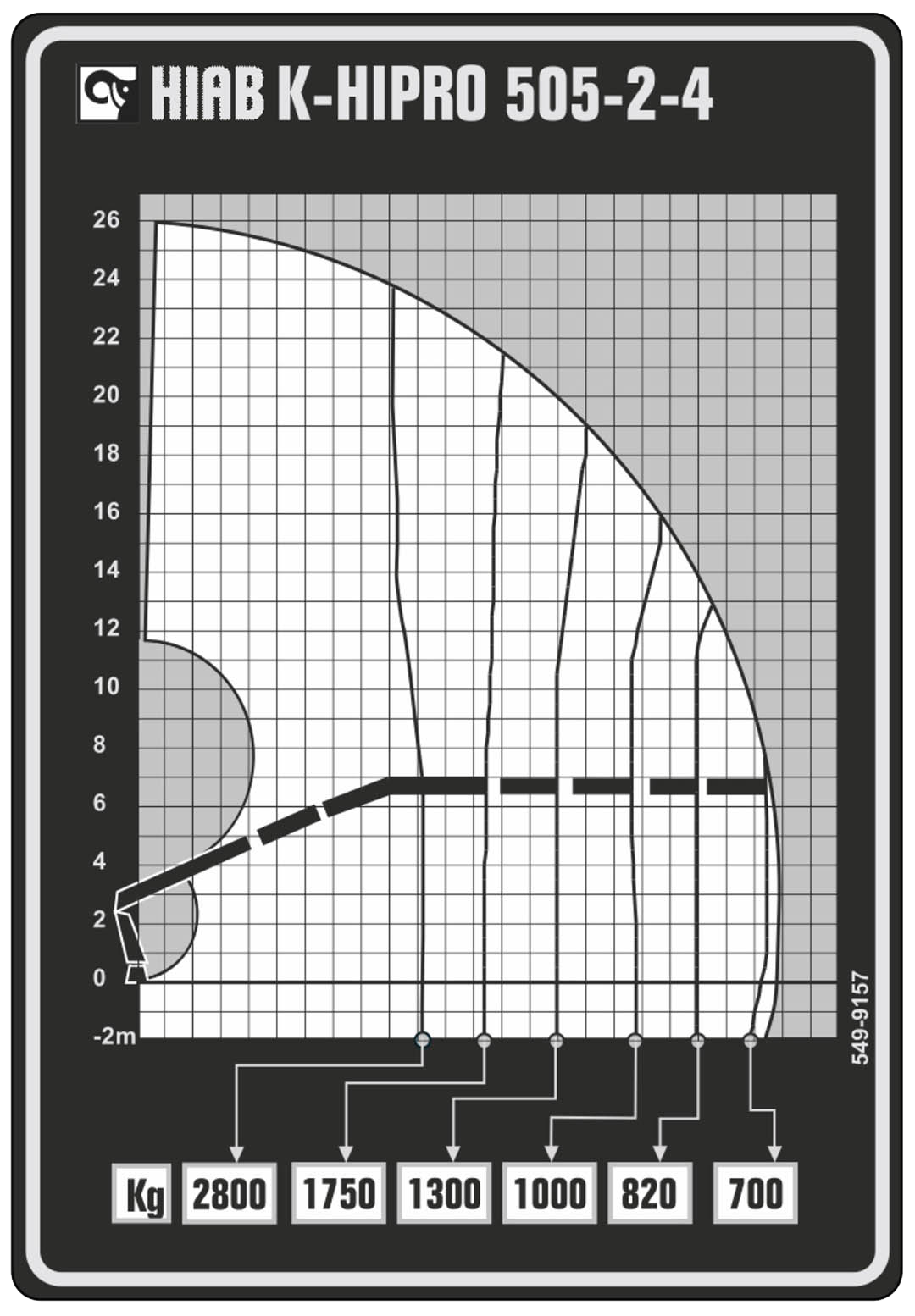

HIAB K-HiPRO 505

THE LONGEST, STRONGEST 9-STOREY DRYWALL CRANE

HIAB X-CLX 528

Lifting Capacity
9,800 kg @ 4.6 m
2,840 kg @ 14.5 m

Maximum Hydraulic Outreach
14.5 m

HIAB XS 544

Lifting Capacity
10,700 kg @ 4.4 m
1,380 kg @ 21.7 m
230kg @ 31.6m (with jib)

Maximum Hydraulic Outreach
21.8 m (31.7m with jib)

HIAB X-HiPRO 548

Lifting Capacity
9600 kg @ 4.7m / 1380 kg @ 21.7m (HIAB X-HiPro 548 E-9)
9900 kg @ 4.6m / 1720 kg @ 19.6m /
440 kg @ 22.7m / 230 kg @ 31.6m (HIAB X-HIPRO 548 E-8 + JIB 150X-6 JDC)

Maximum Hydraulic Outreach
21.8 m (HIAB X-HiPro 548 E-9)

Max. Hydraulic Outreach with Jib
31.7 m (HIAB X-HIPRO 548 E-8 + JIB 150X-6 JDC)

HIAB XS 622

Lifting Capacity
10,100 kg @ 5.1m
1,580 kg @ 22.2m

Maximum Hydraulic Outreach
22.7m / 32.5m (jib)

HIAB X-HiPRO 638

Lifting Capacity
18,000 kg @ 3.6 m / 2,040 kg @ 23.8 m

Maximum Hydraulic Outreach
22.3 m

HIAB X-HiPRO 658

Lifting Capacity
10,100 kg @ 5.1m / 1,580 kg @ 22.2m

Maximum Hydraulic Outreach
17.0 m

HIAB X-HiPRO 858

Lifting Capacity
18,000 kg @ 3.6 m / 2,040 kg @ 23.8 m

Maximum Hydraulic Outreach
24.0 m

HIAB X-HiPRO 1058

Lifting Capacity
18,000 kg @ 4.7 m / 3,450 kg @ 19.4 m

Maximum Hydraulic Outreach
19.4 m

Learn More About The

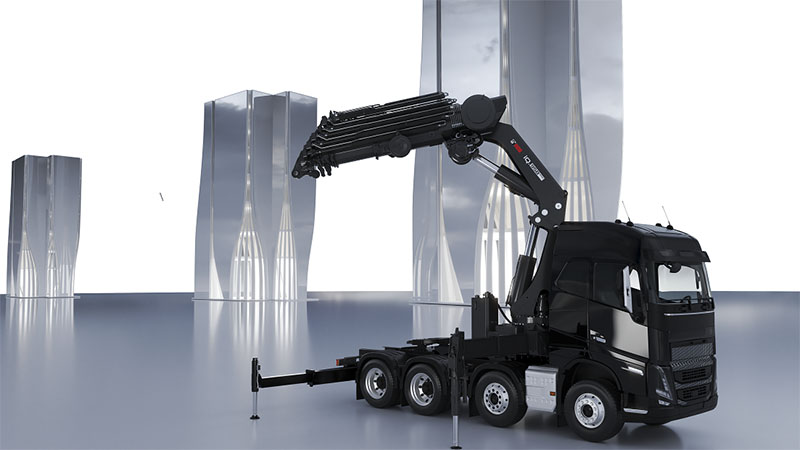

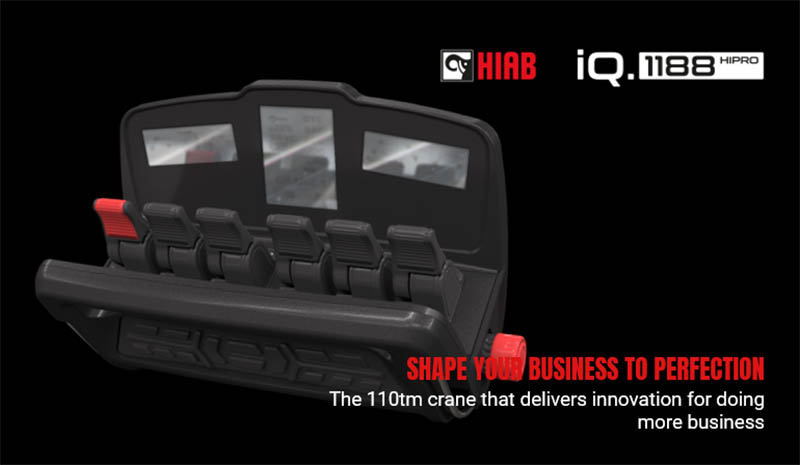

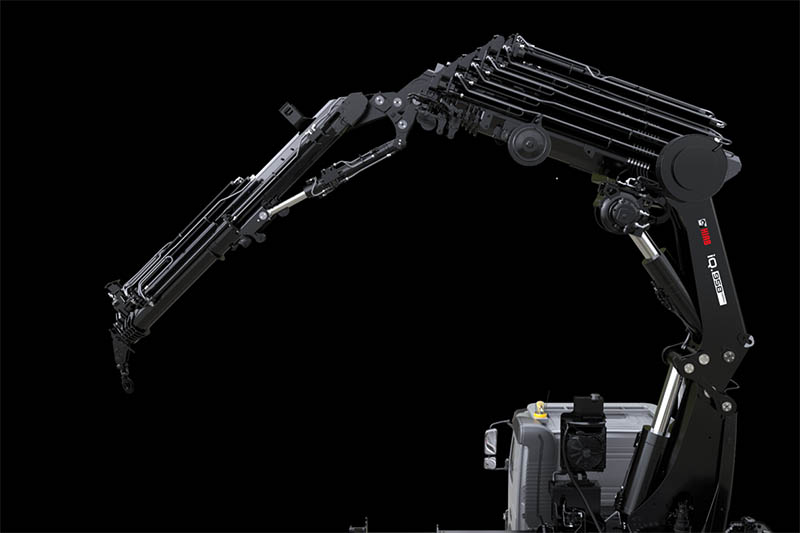

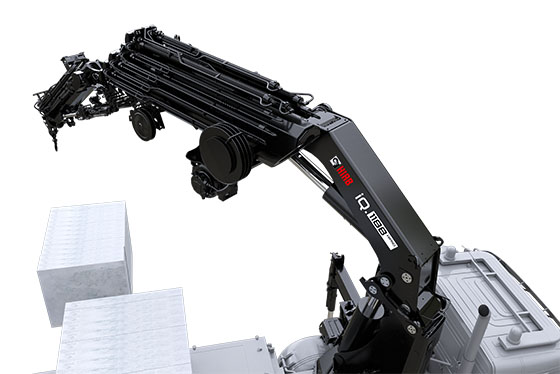

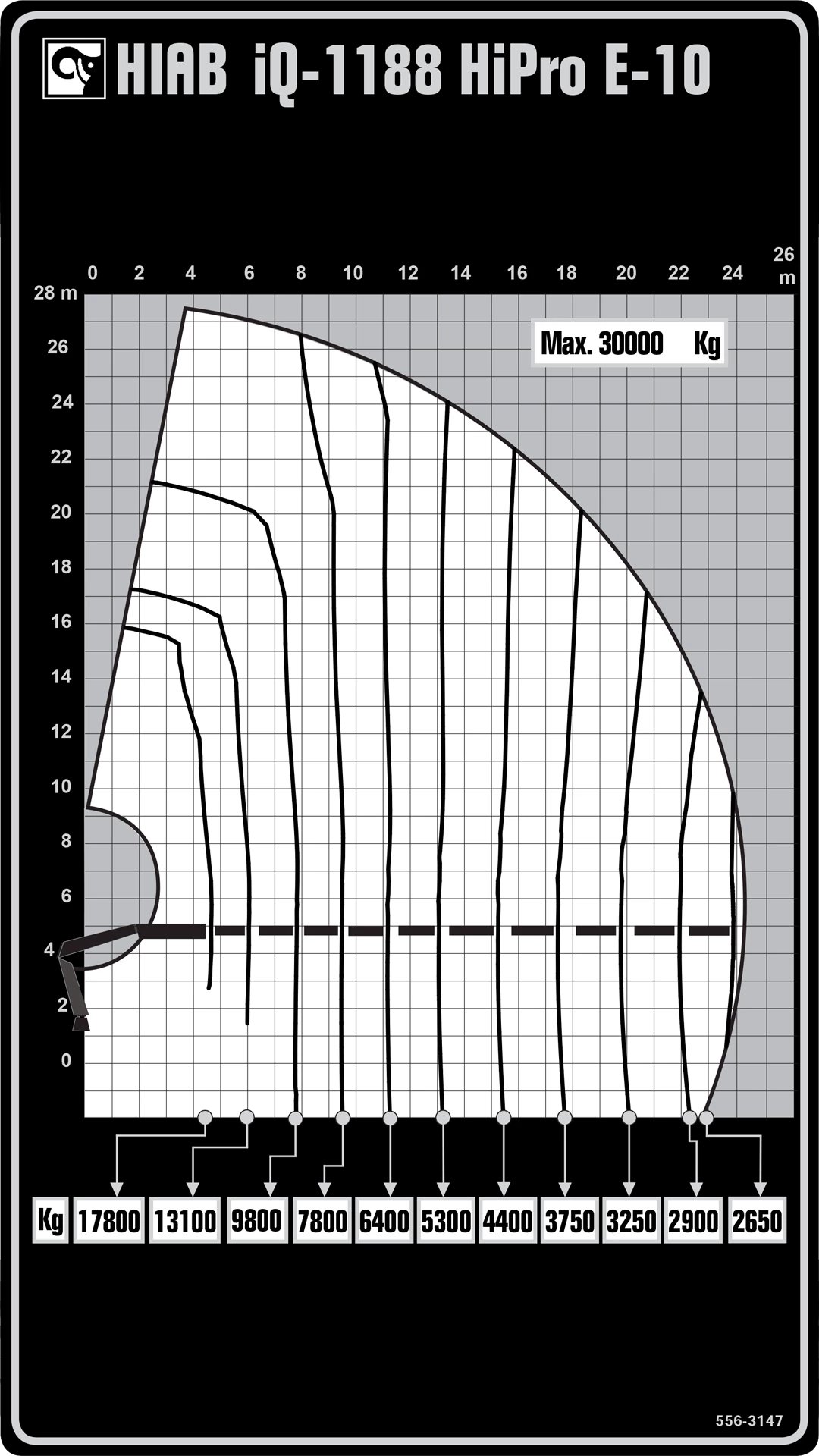

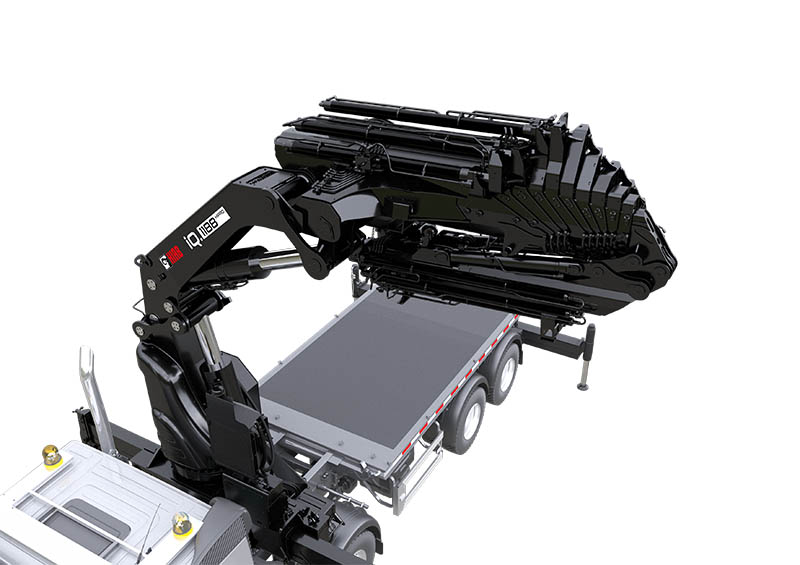

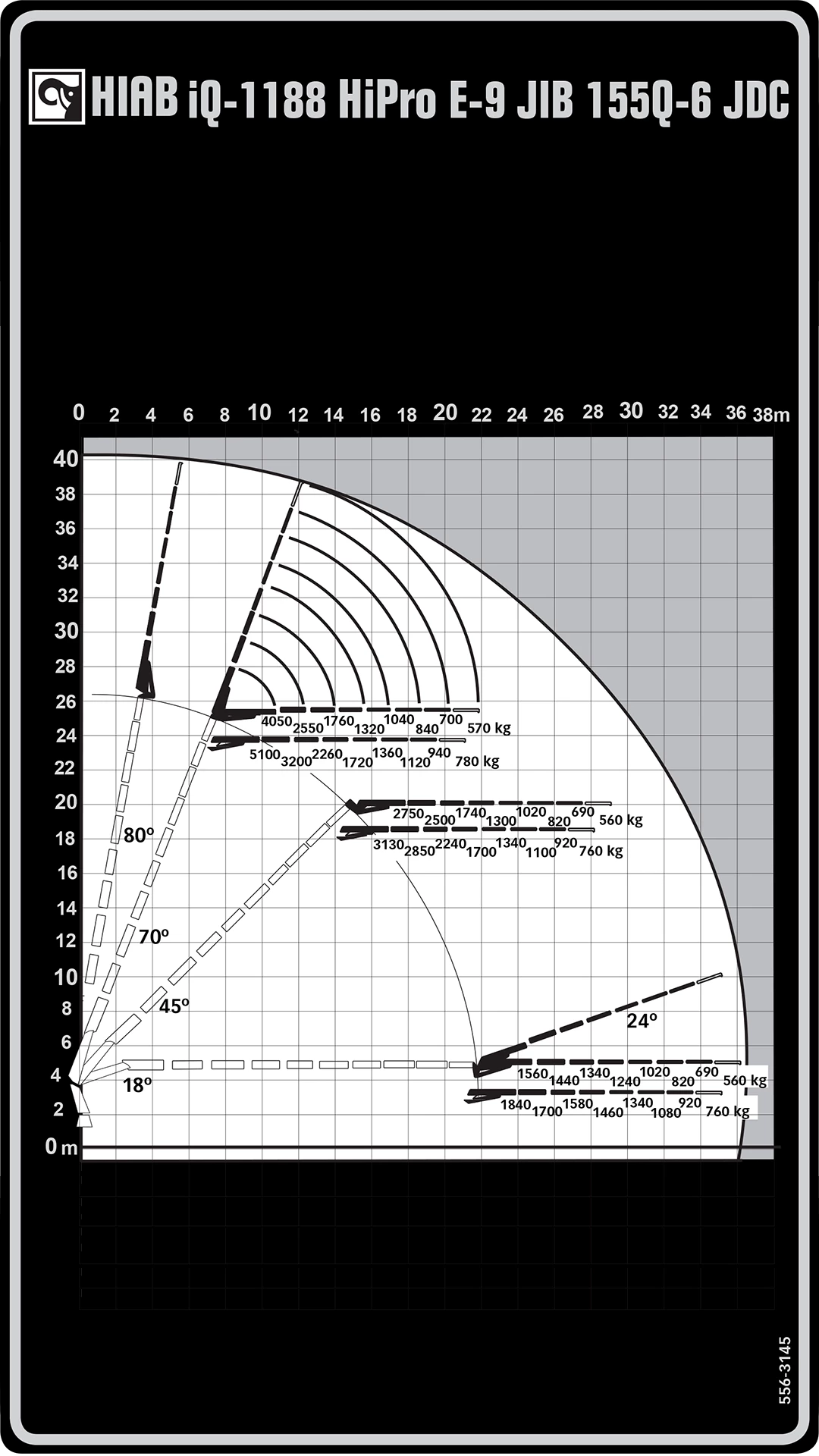

HIAB iQ.1188 HiPRO

FAST, INTELLIGENT CONTROL ON 4-AXLES

Learn More About The

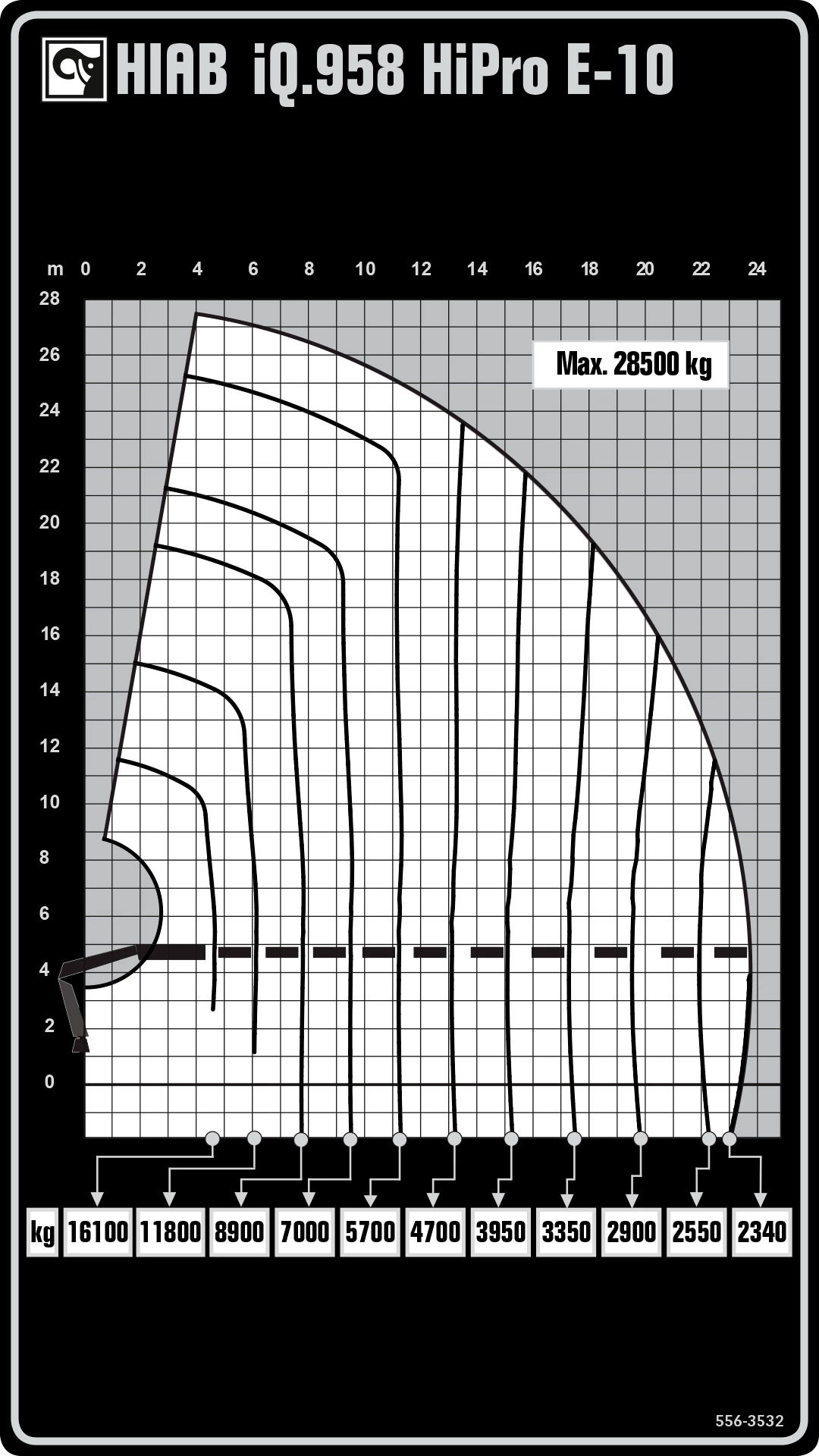

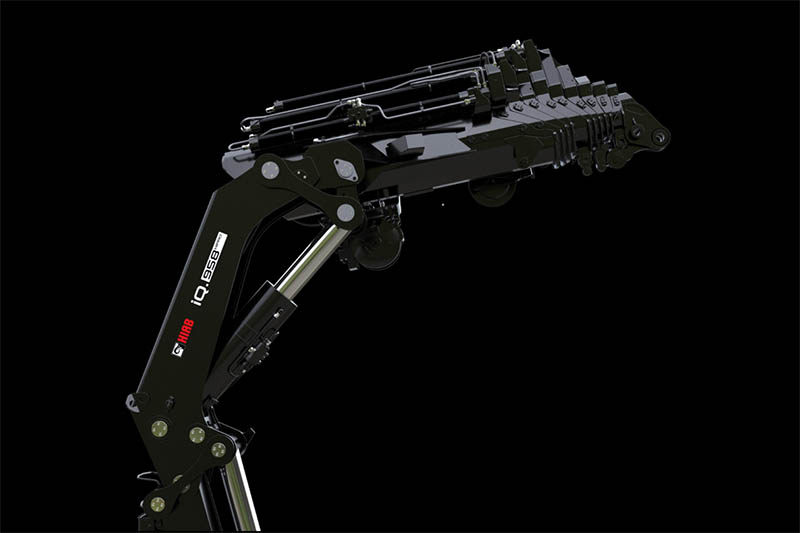

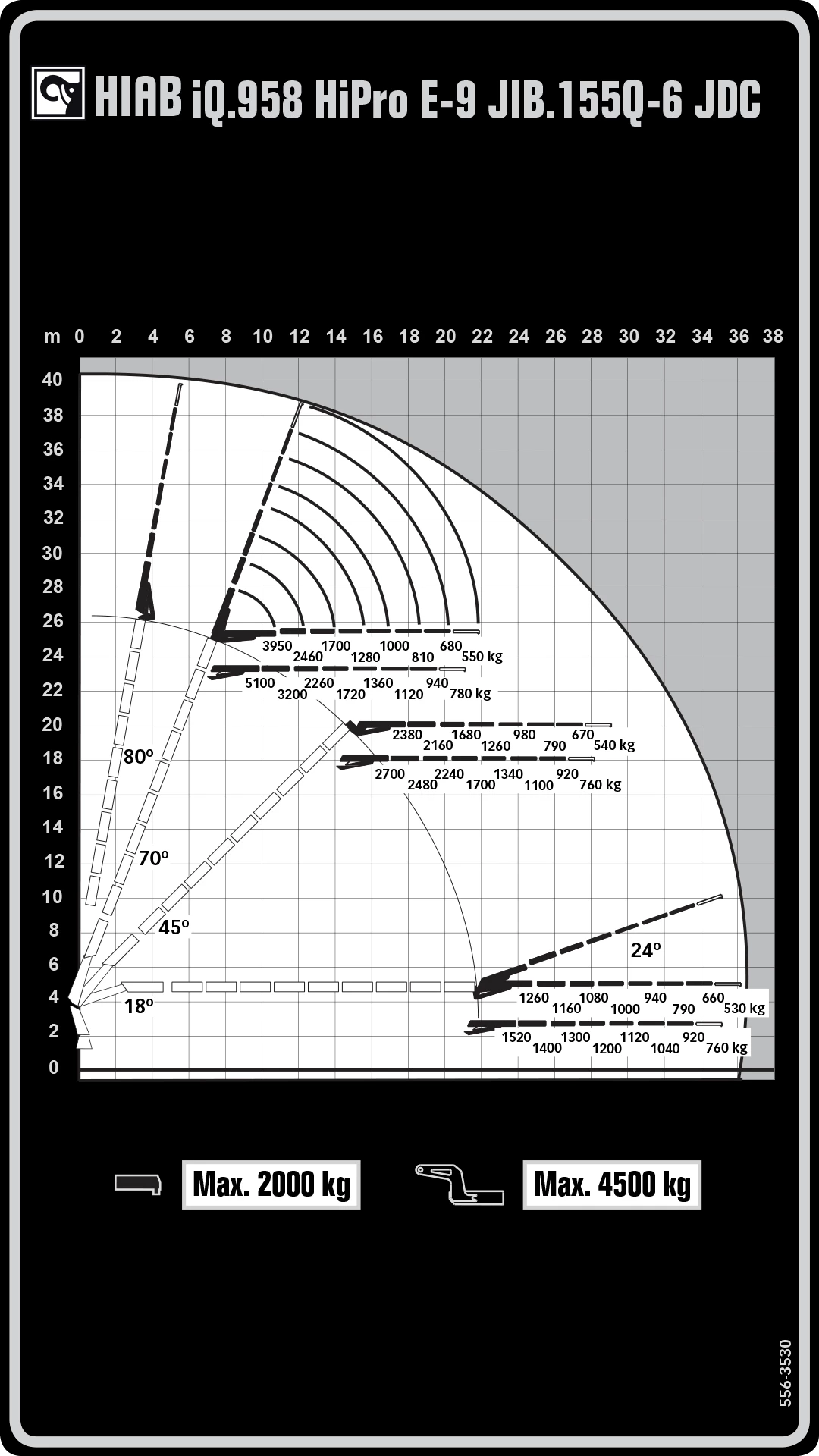

HIAB iQ.958 HiPRO

POWERFUL AND FUTURE-FORWARD
